M53

Pros & Cons

At a Glance

Overview

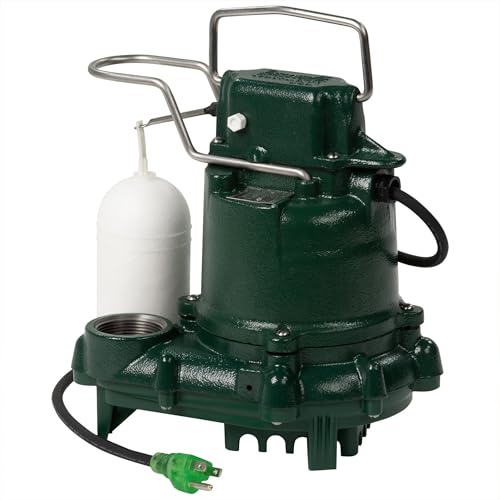

The Zoeller M53 Mighty-mate is the pump plumbers name when a homeowner asks what to put in a sump pit. It has held that position for decades for the same reason the Honda Civic held its position in compact cars — it is not the biggest, the cheapest, or the most feature-rich option, but it is the one with the longest record of simply running. At $203.74 it sits in the middle of the residential submersible market: well above budget thermoplastic units like the Superior 91250, well below high-flow units like the Wayne CDU980E, and priced where most homeowners who plan to own a house for more than a few years should be shopping.

What the M53 offers is conservative engineering. A 3/10 HP oil-filled, hermetically sealed motor (commonly marketed as 1/3 HP), a fully cast-iron body and base with a powder-coated epoxy finish, a vortex impeller that passes 1/2-inch solids, and a 1-1/2 inch discharge. Zoeller's published performance curve shows 43 GPM at 5 feet of head and 34 GPM (2,040 GPH) at 10 feet — enough for the vast majority of residential basements with a typical 8-to-10-foot discharge lift. Every pump is factory-tested twice before it ships, and the 3-year warranty is backed by a U.S. manufacturer that still makes the pumps in Louisville, Kentucky.

The honest trade-off is the float switch. The M53's vertical float switch is the most-cited failure point in owner reports and plumber commentary, and it is the one component Zoeller itself improved in the step-up M63 model. That does not make the M53 a bad buy — it makes it a buy that should come with a maintenance habit and, for most homes, a backup pump. This review breaks down the specs, the switch question, and who should look elsewhere.

Flow Curve and Motor — What 3/10 HP Actually Moves

The M53 is rated at 3/10 HP on a 115V circuit drawing 9.7 amps. Zoeller's published performance data shows 43 GPM (2,580 GPH) at 5 feet of head, 34 GPM (2,040 GPH) at 10 feet, and roughly 10 GPM at 20 feet, with a shutoff head around 19 feet. The 10-foot number is the one that matters — most basements discharge 8 to 10 vertical feet, so 2,040 GPH is the realistic working capacity.

To put that in context against the catalog: the Wayne CDU980E moves roughly 3,500 GPH at 10 feet with a 3/4 HP motor, so the Wayne wins decisively on raw throughput. But throughput is not the binding constraint in most pits. A standard 18-inch basin with typical inflow rarely demands more than 1,500–2,000 GPH to keep up, and a pump that is oversized for its pit short-cycles — running frequent short bursts that wear the motor and switch faster. The M53's capacity is sized for the median residential basement, not the worst one.

The motor itself is the durable part of the package. It is oil-filled and hermetically sealed, with an engineered thermoplastic and cast-iron construction path that plumbers report routinely lasts 7 to 15 years of regular service. In owner reports, when an M53 dies, it is almost never the motor — it is the switch, which is the next section.

The Vertical Float Switch — The Known Weak Point

The M53 uses a 2-pole snap-action vertical float switch that turns the pump on at roughly 7-1/4 inches of water and off at about 3 inches. The vertical design is the right choice for narrow pits — it requires only about a 10-inch basin diameter, versus 14 inches for tethered-float pumps like the Wayne CDU790 — and the snap-action mechanism avoids the contact-burning slow make-and-break of cheaper mercury or micro switches.

The documented failure mode is switch fatigue. Owner reports and plumber forums consistently describe M53 float switches failing somewhere in the 2-to-7-year range depending on cycle frequency, usually failing in the off position (pump won't start) rather than the on position (pump won't stop). A pump cycling constantly during a wet spring accumulates cycles fast, which is why heavy-inflow homes see earlier failures. Zoeller sells replacement switch assemblies, and the swap is a well-documented DIY job, but a failed switch in a storm is a flooded basement.

This is exactly the gap Zoeller addressed with the M63, which carries an upgraded switch assembly factory-tested to 3 million cycles. If your pit sees heavy, frequent inflow, the M63's premium over the M53 is essentially switch insurance and worth paying. If your pit cycles modestly — a few times a day in wet season — the M53's switch record is acceptable, provided you test it monthly and pair the pump with a backup (see the backup section below).

Construction — Cast Iron Where It Counts

The M53's body and base are cast iron with a corrosion-resistant powder-coated epoxy finish, and the hardware, switch arm, and switch guard are stainless steel. At roughly 21 pounds it feels like a piece of equipment rather than an appliance, and the weight is functional — cast iron dissipates motor heat better than thermoplastic housings and anchors the pump against the vibration that walks lighter pumps around a pit.

The impeller is a non-clogging vortex design rated to pass 1/2-inch spherical solids. Vortex impellers move water by creating a vortex rather than by direct impeller contact with the solids, which is why there is no intake screen to clog — a meaningful reliability advantage over screened budget pumps in pits that see grit, small gravel, or debris. The trade-off of a vortex design is slightly lower hydraulic efficiency per watt, which is part of why a 3/10 HP Zoeller moves about the same water as some nominally larger motors from other brands.

Compare this to the budget tier: the Superior 91250 uses a thermoplastic housing at roughly a third of the price. The Superior is a legitimate light-duty pump, but its construction and 1-year warranty reflect a different expected service life. The M53's cast-iron build and 3-year warranty are what the price difference buys — a pump you install and mostly ignore for the better part of a decade.

Installation Fit — Pit Size, Discharge, and Cord

The M53 fits basins as narrow as 10 inches in diameter thanks to the vertical float, and its roughly 10-inch width and 10-1/8-inch height leave room in a standard 18-inch pit for a battery backup pump alongside it. The fixed on/off levels (about 7-1/4 inches on, 3 inches off) are factory-set and not adjustable, which matters in shallow pits — if your basin is short, verify you have enough depth for the pump to achieve its full drawdown cycle.

The discharge is 1-1/2 inch NPT, the residential standard, so it threads directly into existing 1-1/2 inch PVC discharge plumbing. A check valve on the discharge line is required in practice — without one, the water column in the pipe falls back into the pit at the end of every cycle, forcing the pump to re-pump the same water and dramatically shortening its life. The 9-foot power cord is adequate for pits near an outlet but shorter than some competitors; the cord should run to a dedicated GFCI-protected 115V circuit with no extension cords.

One installation note from owner reports: drill a 3/16-inch weep hole in the discharge pipe just above the pump outlet (angled downward) as Zoeller's manual specifies, to prevent air lock. Skipping this step is a common cause of a new M53 that runs but moves no water.

Backup Pairing and Storm-Outage Planning

A sump pump that only works when the power is on has an obvious hole in its coverage — severe storms bring both maximum inflow and maximum outage probability. The M53 is a primary pump, and Zoeller itself designs it to share a pit with a backup. For most homes the practical pairings are a 12V battery backup like the Basement Watchdog BWSP or Wayne ESP25n, or a water-powered unit like the Basepump RB750-EZ if you have municipal water with adequate pressure.

The battery option fits more situations: the BWSP and ESP25n are purpose-built backup pumps that sit on their own discharge tee, run off a deep-cycle battery, and can move roughly 1,000–2,000 GPH at 10 feet for several hours of intermittent runtime. The water-powered RB750-EZ never runs out of runtime but consumes municipal water (roughly 1 gallon of city water per 2 gallons pumped) and requires sufficient water pressure, which rules it out for well-water homes.

Whichever route you choose, the sizing logic is the same: the M53 handles the everyday and storm workload while grid power is up, and the backup only needs to survive the outage window. A single M53 with no backup is a reasonable choice only for homes where a flooded basement is an inconvenience rather than a financial disaster.

Zoeller M53 vs the Alternatives

Against the Wayne CDU980E: the Wayne moves significantly more water (about 3,500 GPH at 10 feet versus 2,040) for comparable money, with a 5-year warranty and stainless-and-cast-iron construction. The Wayne is the better pick for high-inflow pits that genuinely need the flow. The M53 counters with a longer plumber track record, right-sized capacity for average pits, and a quieter operating reputation. For a typical basement, either is defensible; for a pit that floods hard every spring, the Wayne's headroom wins.

Against its own sibling, the Zoeller M63: the M63 is the same pump concept with a cast-iron switch case and an upgraded switch rated to 3 million cycles, at a meaningful price premium. If you are buying for a high-cycle pit or you simply want the lowest-maintenance option, buy the M63. If your pit cycles moderately, the M53 delivers the same hydraulic performance for less.

Against budget options like the Superior 91250 or the Aquastrong 1HP: the budget pumps compete on price and, in the Aquastrong's case, headline horsepower, but neither matches the M53's build quality, factory testing, warranty support, or service network. The M53 at $203.74 is the point in the market where you stop paying for marketing specs and start paying for components — which is why it remains the default recommendation.
